Brand Name : LONGDA LED
Model Number : P2 flexible led screen
Certification : CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin : SHENZHEN
MOQ : 1 Sqm
Price : Usd999 ~ Usd1299 / Sqm
Payment Terms : L / C , T / T , Western Union , MoneyGram
Supply Ability : 1000sqm per month
Delivery Time : 15 - 18 days
Packaging Details : Flight case packing or Plywood case packing
Pixel Pitch : 2mm
Usage : Indoor P2 soft led display
Screen dimension : 480 x 480mm
Led chip : 1515
Cabinet Material : Die - casting Aluminum
Brightness : 300 - 600nits
LED Flexible P2 Indoor Curving Screen Soft Flexible LED Video Display Module
Advantages :
1 . Ultra HD: 250000 pixels per square meters , like as HD TV screen with full color ;

 2 . Ultra slim cabinet : the thickness is only 65mm , with fashion configuration design ;

 3 . High strength : made with high quality Die - casting Aluminum cabinet , enhance the
heat dissipation , and extend the cabinet ' s working life .
Specifications :
|  			 Indoor P2 Full Color LED Screen  |  		|||||||
|  			 Part I Technicial Parameters  |  		|||||||
|  			 Led Module Specification  |  		|||||||
|  			 NO.  |  			 			 Item  |  			 			 Specification  |  		|||||
|  			 1  |  			 			 Pixel Pitch  |  			 			 2mm  |  		|||||
|  			 2  |  			 			 Module Resolution  |  			 			 W64×H64dots  |  			 			 W128×H64dots  |  			 			 W160×H80dots  |  			 			 W120×H60dots  |  		||
|  			 3  |  			 			 Module Size  |  			 			 128*128mm  |  			 			 256*128mm  |  			 			 320*160mm  |  			 			 240*120mm(soft)  |  		||
|  			 4  |  			 			 Led Packing  |  			 			 1515  |  		|||||
|  			 5  |  			 			 IP Rate  |  			 			 43  |  		|||||
|  			 6  |  			 			 IC  |  			 			 2038  |  			 			 5124  |  			 			 6363  |  			 			 5153  |  		||
|  			 7  |  			 			 LED composition  |  			 			 1R1G1B  |  		|||||
|  			 Cabinet Specification  |  		|||||||
|  			 1  |  			 			 Cabinet Size  |  			 			 512*768mm  |  			 			 512*512mm  |  			 			 640*480mm  |  			 			 480*480mm  |  		||
|  			 2  |  			 			 Module Qty  |  			 			 W4X H6=24PCS  |  			 			 W2X H4=8PCS  |  			 			 W2× H3=6PCS  |  			 			 W2× H4=8PCS  |  		||
|  			 3  |  			 			 Physical Resolution  |  			 			 W256×H384dots  |  			 			 W256×H256dots  |  			 			 W320×H240dots  |  			 			 W240× H240dots  |  		||
|  			 4  |  			 			 Power Consumption(MAX.)  |  			 			 400W/m2  |  			 			 200W/m2  |  			 			 200W/m2  |  			 			 650W/m2  |  		||
|  			 5  |  			 			 Power Consumption(AVE.)  |  			 			 150W/m2  |  			 			 100W/m2  |  			 			 100W/m2  |  			 			 300W/m2  |  		||
|  			 6  |  			 			 Cabinet Material  |  			 			 Die-casting Aluminum  |  		|||||
|  			 7  |  			 			 Physical Density  |  			 			 250000 dots/m2  |  		|||||
|  			 8  |  			 			 Net Weight  |  			 			 11Kg  |  			 			 8Kg  |  			 			 9.7Kg  |  			 			 8kg  |  		||
|  			 Screen Specification  |  		|||||||
|  			 1  |  			 			 Brightness  |  			 			 700cd/m2  |  			 			 800cd/m2  |  			 			 600cd/m2  |  			 			 700cd/m2  |  		||
|  			 2  |  			 			 Colors  |  			 			 16.7 trillion  |  		|||||
|  			 3  |  			 			 Brightness Control  |  			 			 Software 256 level adjustable  |  		|||||
|  			 4  |  			 			 Gray Level  |  			 			 14  |  		|||||
|  			 5  |  			 			 View Distance  |  			 			 2m~20m  |  			 			 1.3~12m  |  		||||
|  			 6  |  			 			 Refresh Rate  |  			 			 ≥1200~1920Hz  |  			 			 ≥1200~1920Hz  |  			 			 ≥1920~3840Hz  |  			 			 ≥2880Hz  |  		||
|  			 7  |  			 			 Drive Mode  |  			 			 1/32s  |  			 			 1/40s  |  			 			 1/30s  |  		|||
|  			 8  |  			 			 Life Span  |  			 			 100,000h  |  		|||||
|  			 9  |  			 			 MTBF  |  			 			 1000h  |  		|||||
|  			 10  |  			 			 Control mode  |  			 			 Synchronous control or Asynchronous control  |  		|||||
|  			 11  |  			 			 Frame Frequency  |  			 			 ≥60Hz  |  		|||||
|  			 12  |  			 			 Certification  |  			 			 CE/ROHS/FCC/CCC/ISO9001/ISO14001  |  		|||||
|  			 13  |  			 			 Operation Temperature  |  			 			 -20℃ ~ +45℃  |  		|||||
|  			 14  |  			 			 Operation Humidity  |  			 			 10%~95%  |  		|||||


FAQ :
1 ) Reply your inquiry in 24 working hours ;
 2 ) Experienced staffs answer all your query in fluent English,Spanish,French,German etc ;

 3 ) Customized design is available,OEM & ODM are welcomed ;

 4 ) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs ;

 5 ) Special discount and protection of sales area provided to our distributor ;

 6 ) Warmly welcome your visit in our company if available ;

 7 ) Guidance service: We can guide on line if customers have questions about the installation and usage ;
 For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance ;

 8 ) Warranty period: 2-3 years after shipment .
|
                                             |

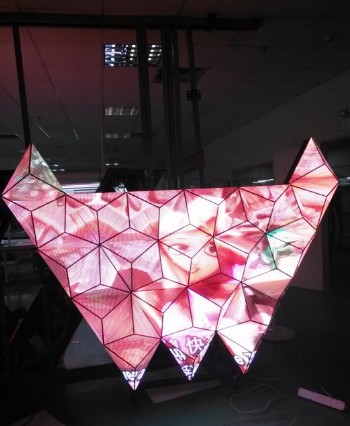

                        ODM Soft Flexible Led Display Module SMD1515 Images |
